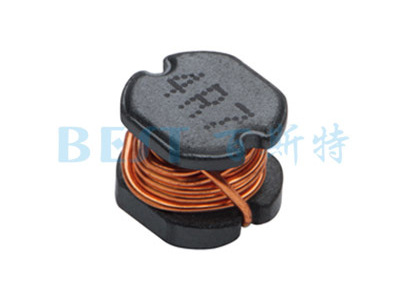

| 型号 |
电感值(μH) |
DCR (Max)直流电阻(Ω) |
IDC (Max)额定电流(A) |
测试频率(kHz) |
| CD54-1.0uH/M |
1.0 |
0.013 |
4.60 |
100 |
| CD54-1.2uH/M |
1.2 |
0.015 |
4.50 |
100 |
| CD54-1.5uH/M |
1.5 |
0.020 |
4.00 |
100 |
| CD54-2.2uH/M |
2.2 |
0.026 |
3.50 |
100 |
| CD54-3.3uH/M |
3.3 |
0.035 |
3.00 |
100 |
| CD54-4.7uH/M |
4.7 |
0.045 |
2.80 |
100 |
| CD54-5.6uH/M |
5.6 |
0.050 |
2.70 |
100 |
| CD54-6.8uH/M |
6.8 |
0.060 |
2.50 |
100 |
| CD54-8.2uH/M |
8.2 |
0.070 |
2.20 |
100 |
| CD54-10uH/M |
10 |
0.080 |
2.00 |
100 |
| CD54-15uH/M |
15 |
0.120 |
1.80 |
100 |
| CD54-22uH/M |
22 |
0.150 |
1.20 |
100 |
| CD54-27uH/M |
27 |
0.160 |
1.10 |
100 |
| CD54-33uH/M |
33 |
0.200 |
1.00 |
100 |
| CD54-39uH/M |
39 |
0.260 |
0.90 |
100 |
| CD54-47uH/M |
47 |
0.340 |
0.85 |
100 |
| CD54-56uH/M |
56 |
0.380 |
0.80 |
100 |
| CD54-68uH/M |
68 |
0.440 |
0.60 |
100 |
| CD54-82uH/M |
82 |
0.500 |
0.60 |
100 |
| CD54-100uH/M |
100 |
0.660 |
0.50 |
100 |
| CD54-120uH/M |
120 |
0.850 |
0.45 |
100 |
| CD54-220uH/M |
220 |
1.500 |
0.25 |
100 |
| CD54-270uH/M |
270 |
1.800 |
0.23 |
100 |
| CD54-330uH/M |
330 |
2.500 |
0.30 |
100 |
| CD54-470uH/M |
470 |
3.400 |
0.30 |
100 |
| CD54-1.0mH/M |
1000 |
5.440 |
0.12 |
100 |
| |
|
|
|
|
| Remark: ● M Tolerance: N:±30% , M:±20% , K:±10% |
|
|
| ● Inductance Tested at 100kHz,0.25Vrms (20℃) |
|
|
| ● IDC: DC current at which the inductance drops approximate 20% from its value without current |
| ● Operating Temperature : -25℃ ~ +105℃ |
|
|
| ● Measure Equipment: |
|
|
|
| INDUCTANCE : Agilent HP-4284A , HP-4285A |
|
|
| IDC : Agilent HP-4284A+HP-42841A |
|
|
|
| DCR : CHEN HWA 502A |
|
|
|
